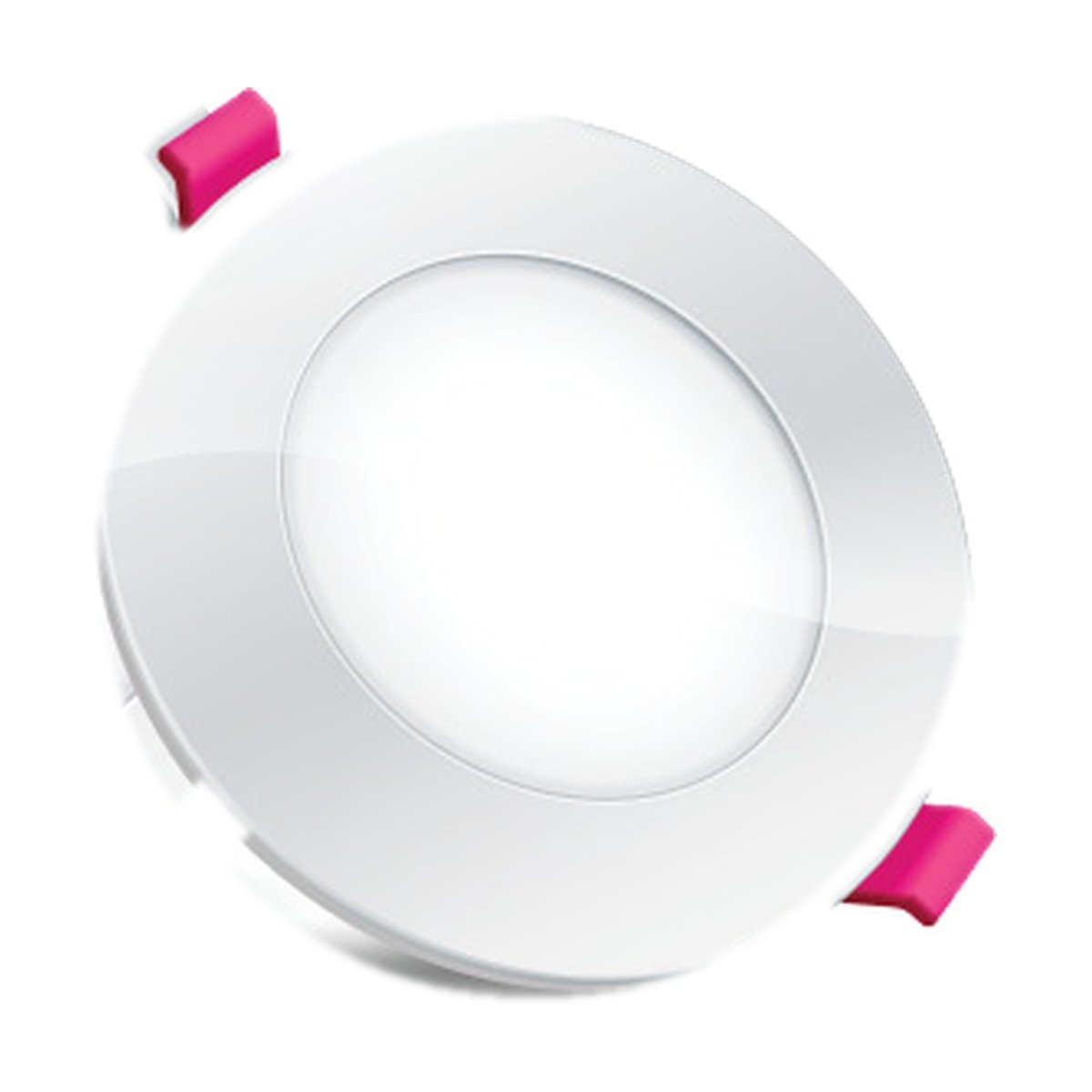

RAFEED Nova Recessed LED Panel

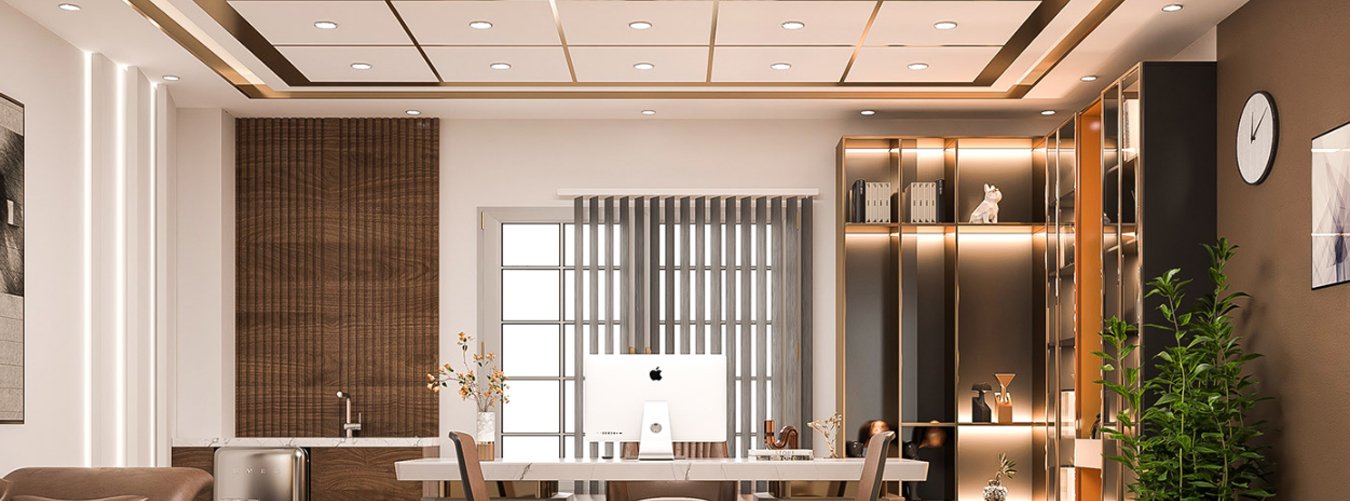

RAFEED Nova LED panel downlights installed in a ceiling

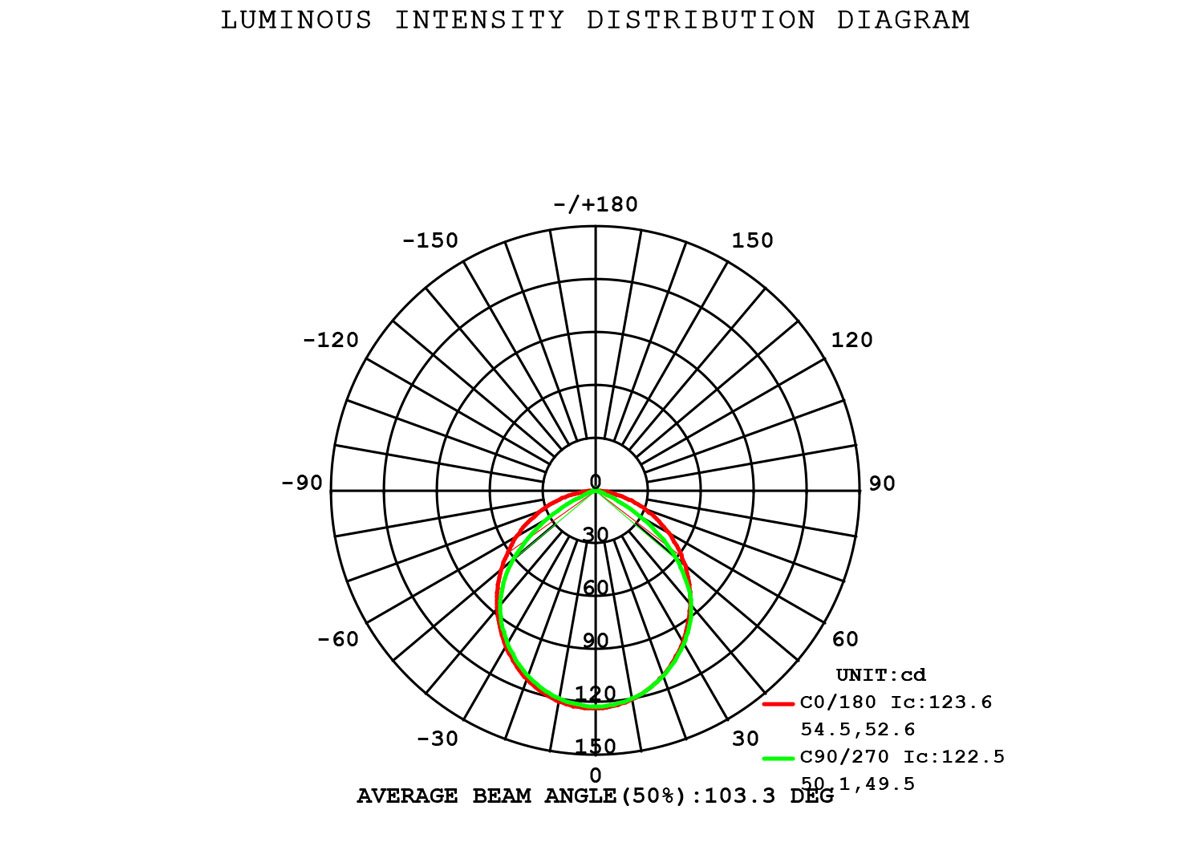

RAFEED panel downlight 4.5W luminous intensity distribution diagram

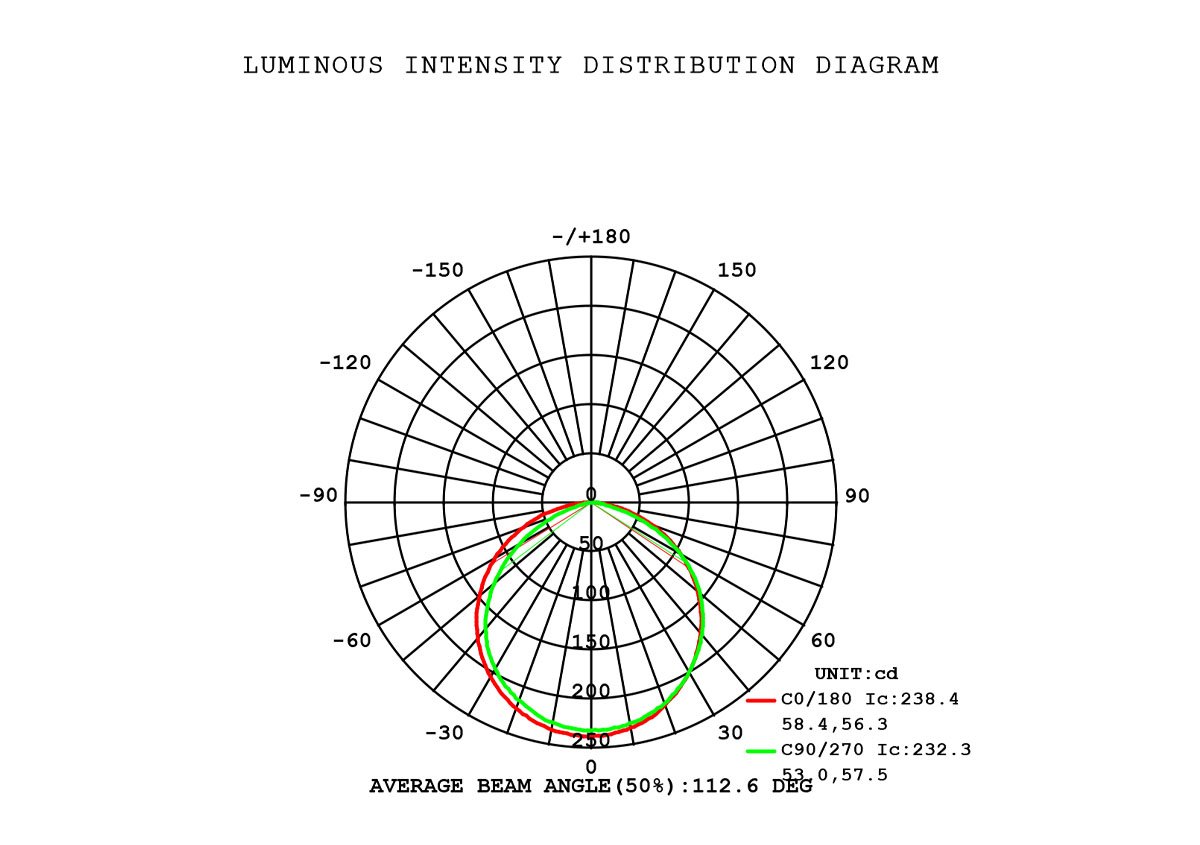

RAFEED panel downlight 8W luminous intensity distribution diagram

RAFEED Nova 15W luminous intensity distribution diagram

RAFEED Nova 20W luminous intensity distribution diagram

RAFEED Nova 24W luminous intensity distribution diagram

RAFEED Panel Downlight

1 Year Warranty

MYGA Trading LLC

Price range: د.إ 3.60 through د.إ 18.75

Wattage

Colour

Clear

Data Sheets

Available in: 4.5W, 8W, 15W, 15W High Lumen, 20W, 24W, 24W High Lumen – 3000K Warm White, 4000K Natural White, 6000K Cool White (options vary by model).

Power Frequency: 50/60Hz
80% Saving Power
CRI: >80
Indoor use only

1 Year Warranty

SKU N/A Categories Lighting Solutions, Panel Lights Brand: RAFEED

Description

Specifications

Wattage: 4.5W / 8W / 15W / 15W High Lumen / 20W / 24W / 24W High Lumen
Power Frequency: 50/60Hz
80% Saving Power
CRI: >80
Indoor use only

Available Versions

Wattage	Item No	Colour Temperature	Lumen	Size	Beam Angle	Lifespan
4.5W	NV60208-A	6000K	297lm	Ø85xH21mm (cut-out Ø70mm)	120°	30,000hrs
4.5W	NV40207-A	4000K	297lm	Ø85xH21mm (cut-out Ø70mm)	120°	30,000hrs
4.5W	NV30206	3000K	297lm	Ø85xH21mm (cut-out Ø70mm)	120°	30,000hrs
8W	NV60211	6000K	520lm	Ø115xH34mm (cut-out Ø100mm)	120°	30,000hrs
8W	NV30209	3000K	520lm	Ø115xH34mm (cut-out Ø100mm)	120°	30,000hrs
8W	NV40210	4000K	520lm	Ø115xH34mm (cut-out Ø100mm)	120°	30,000hrs
8W	NV40210-A	4000K	520lm	Ø115xH34mm (cut-out Ø100mm)	120°	30,000hrs
15W	NV60217	6000K	1125lm	Ø170xH34mm (cut-out Ø150mm)	120°	30,000hrs
15W	NV40216	4000K	1125lm	Ø170xH34mm (cut-out Ø150mm)	120°	30,000hrs
15W High Lumen	NV40216-A	4000K	1275lm	Ø170xH34mm (cut-out Ø150mm)	120°	30,000hrs
15W High Lumen	NV30215-A	3000K	1275lm	Ø170xH34mm (cut-out Ø150mm)	120°	30,000hrs
20W	NV60222-A	6000K	1550lm	Ø224xH34mm (cut-out Ø200mm)	120°	30,000hrs
20W	NV40221-A	4000K	1550lm	Ø224xH34mm (cut-out Ø200mm)	120°	30,000hrs
20W	NV30219-A	3000K	1550lm	Ø224xH34mm (cut-out Ø200mm)	120°	30,000hrs
24W	RFE-0246	6000K	1800lm	Ø224xH34mm (cut-out Ø200mm)	–	30,000hrs
24W High Lumen	NV60228-A	6000K	1850lm	Ø224xH34mm (cut-out Ø200mm)	–	30,000hrs

Choose the wattage and colour temperature you need from the options above.

Downloads

Additional information

Wattage	4.5W, 8W, 15W, 15W High Lumen, 20W, 24W, 24W High Lumen
Colour	3000K Warm White, 4000K Natural White, 6000K Cool White
